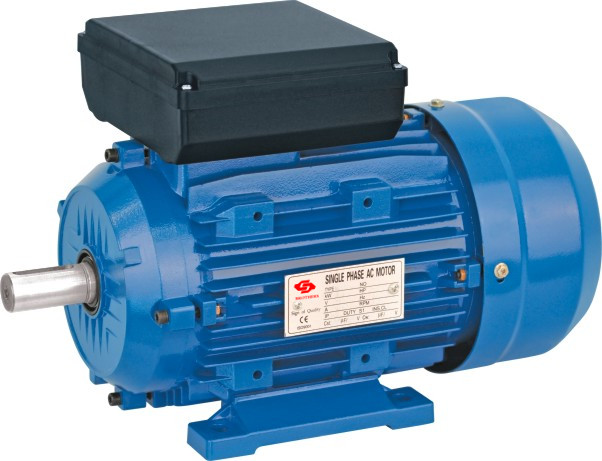

ML SERIES SINGLE PHASE AC ELECTRIC MOTOR

ML Series Alumium housing single phase two value capacitor asynchronous motors, It can be used on air compressor, pump, refrigeration, medical apparatus and instruments, and many other samll size machines.

  • Introduction


  • ML series single phase motor is with dual capacitors. Frame: H71-100, Power: 60W-5.5Kw, ML series single phase motor is with start capacitor. Frame: H56-132, power: 0.18-2.2kw MY series single phase motor is with run capacitor. Frame: H63-90, Power:0.18-1.5kw ML and MC series are with centrifugal switches, and widely used in high start torque equipment. Such as air compressor. MY series are widely used in low start torque equipment, such as fan and water pumps.


  • Features

  • F class, B temperature rise,IP55

  • Aluminum frame with removable feet

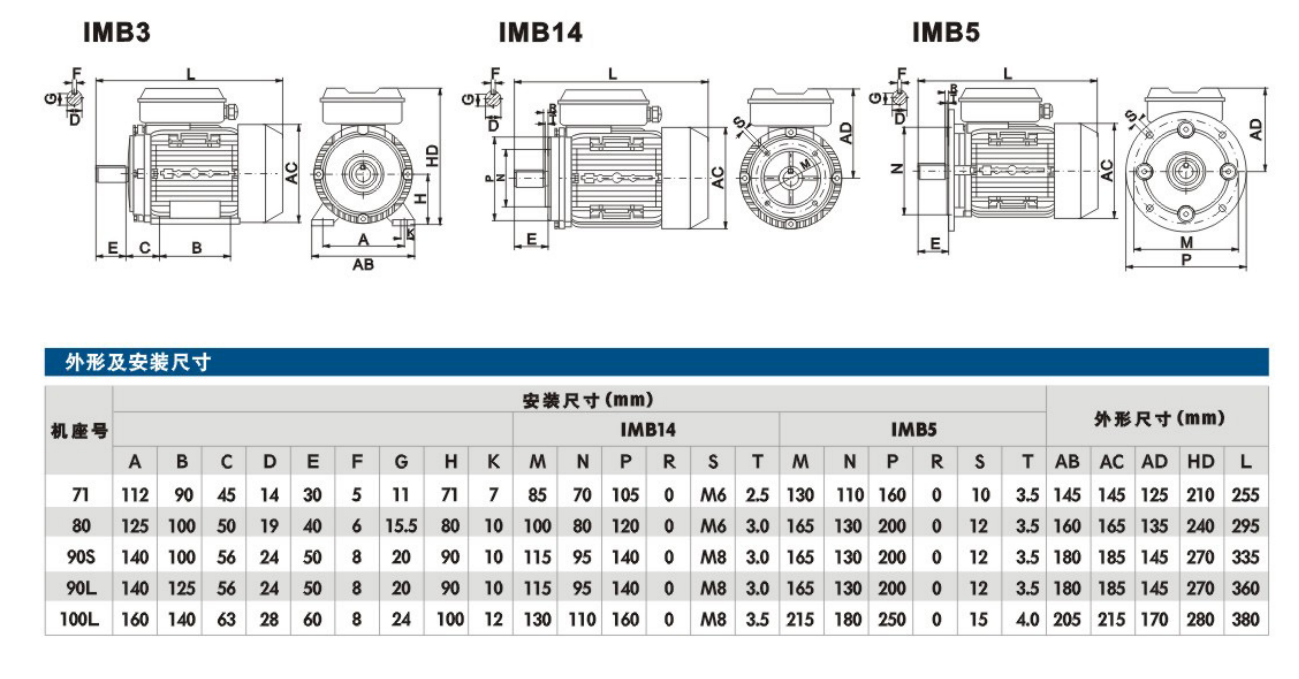

  • Outline dimensions according to IEC standard.

  • S1 Work duty

  • Dust-proof, Vermin and corrosion resistance.

  • High performance, low vibration, safety and reliable
