YCL SERIES AC SINGLE PHASE ELECTRIC MOTOR

Ambient temperature : -15°C≤θ≤40°C

Altitude : not exceed 1000m

Rated frequency : 50Hz,60Hz

Rated voltage: 220V

Protection class : IP44, IP54

Insulation class: B, F

Cooling method : IC0141

Introduction

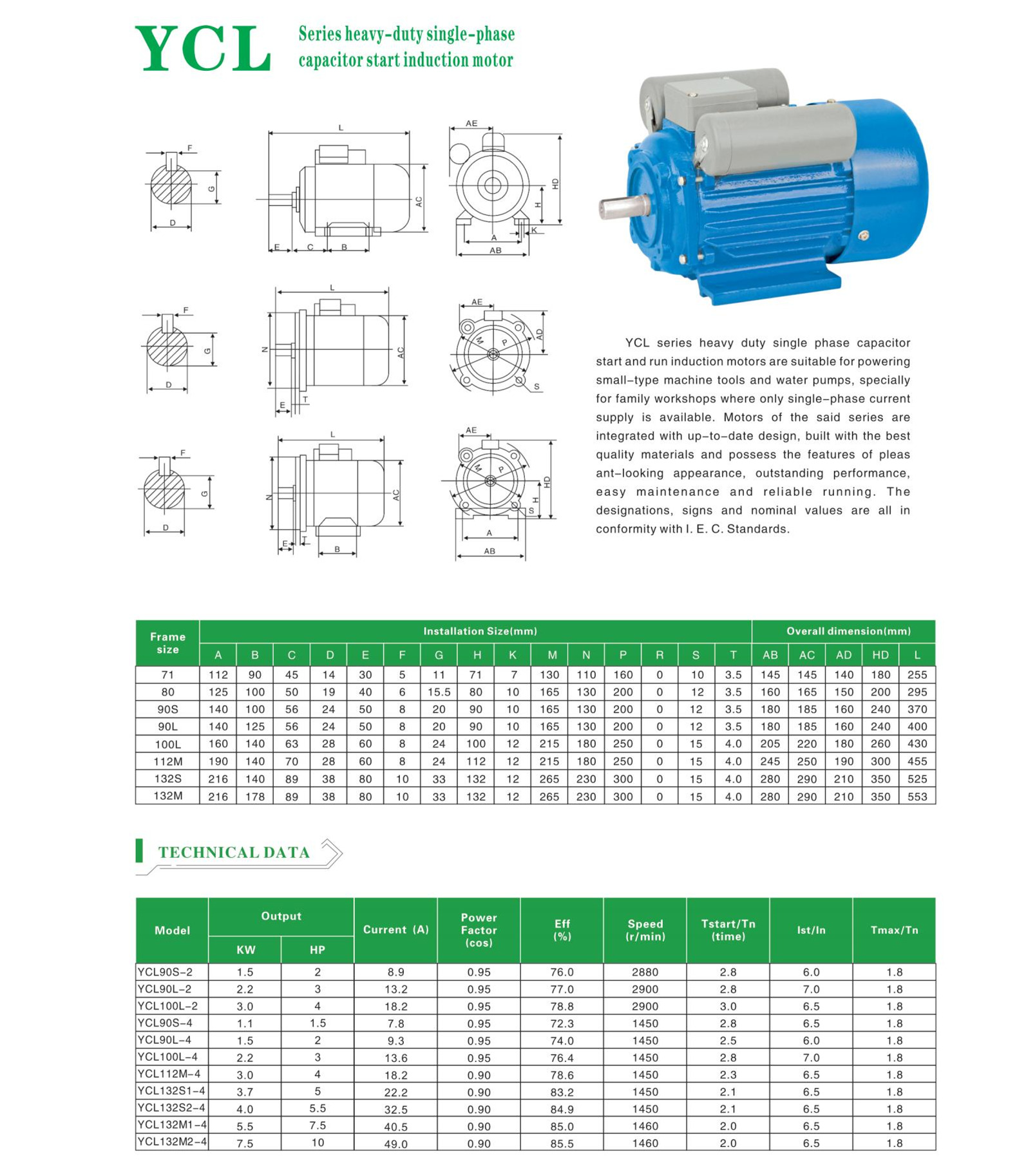

YCL series single-phase heavy-duty capacitor start asynchronous motor is suitable for driving small lathe and water pump, especially good for families and workshops where only single-phase power is available. This series motors are designed with advanced technique and made of fine materials. It also has many other good characteristics such as nice function. lower noise, lower temperature-rise and starting current, higher starting torque, reliable operation, easy maintenance and nice appearance. The YCL series motor is produced in conformity with IEC standards

FeaturesYCLseries motor are similar to YC series in appearance. Comparing with the output of YC series motors, YCL series temperature rise be reduced 8.74k on average, efficiency be incidence be increased 4.21%, power factor be increased 0.16.
