Selfpriming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
Able to pump up to mt.8 depth and work perfectly even in soda-water.
Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Features
Suction lift up to 9m with foot valve.
Maximum operating pressure: 8 bar.
Maximum ambient temperature: +40℃ .
Liquid temperature up to +60℃ .
Maximum altitude +1000m.Stainless steel welding shaft.
AISI420/AISI304/AISI316 stainless steel shaft.
FPM/EPDM/SIC/WC mechanical seal.
Other voltage and frequency.
Three phase power

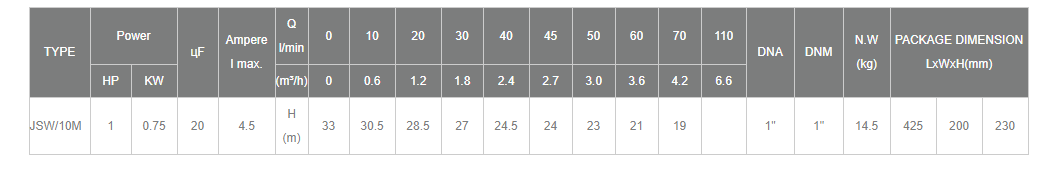

![1563334150316369.png image.png](/data/upload/image/20190717/1563334150316369.png)

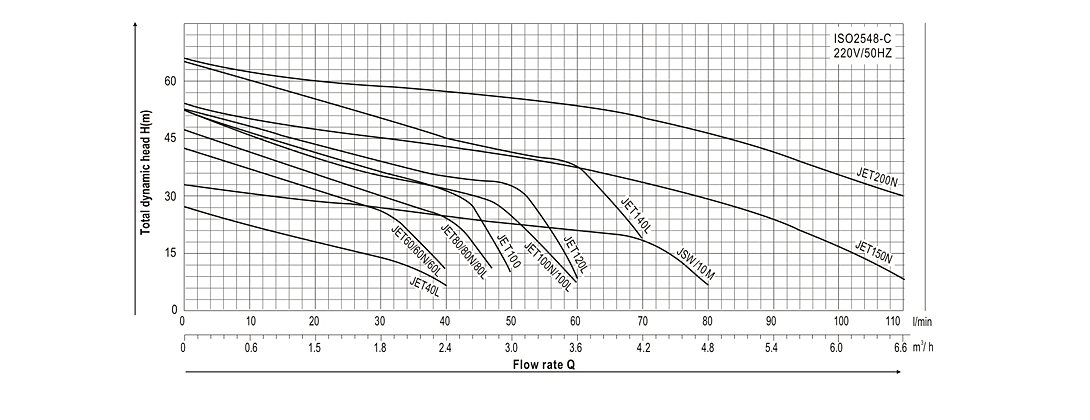

![1563334214153795.png image.png](/data/upload/image/20190717/1563334214153795.png)
