MC SERIES SINGLE PHASE AC ELECTRIC MOTOR

OPERATING CONDITIONS:

Ambient temperature:-15℃<q<80℃

Altitude:<1000m

Rated voltage: 110v,115v,120v,220v,230v,240v

Rated frequency:50Hz or 60Hz

Protection class:IP54/IP55

Insulation class:F/H

Cooling method: ICO141

Duty:S1(continuous)

  • Introduction

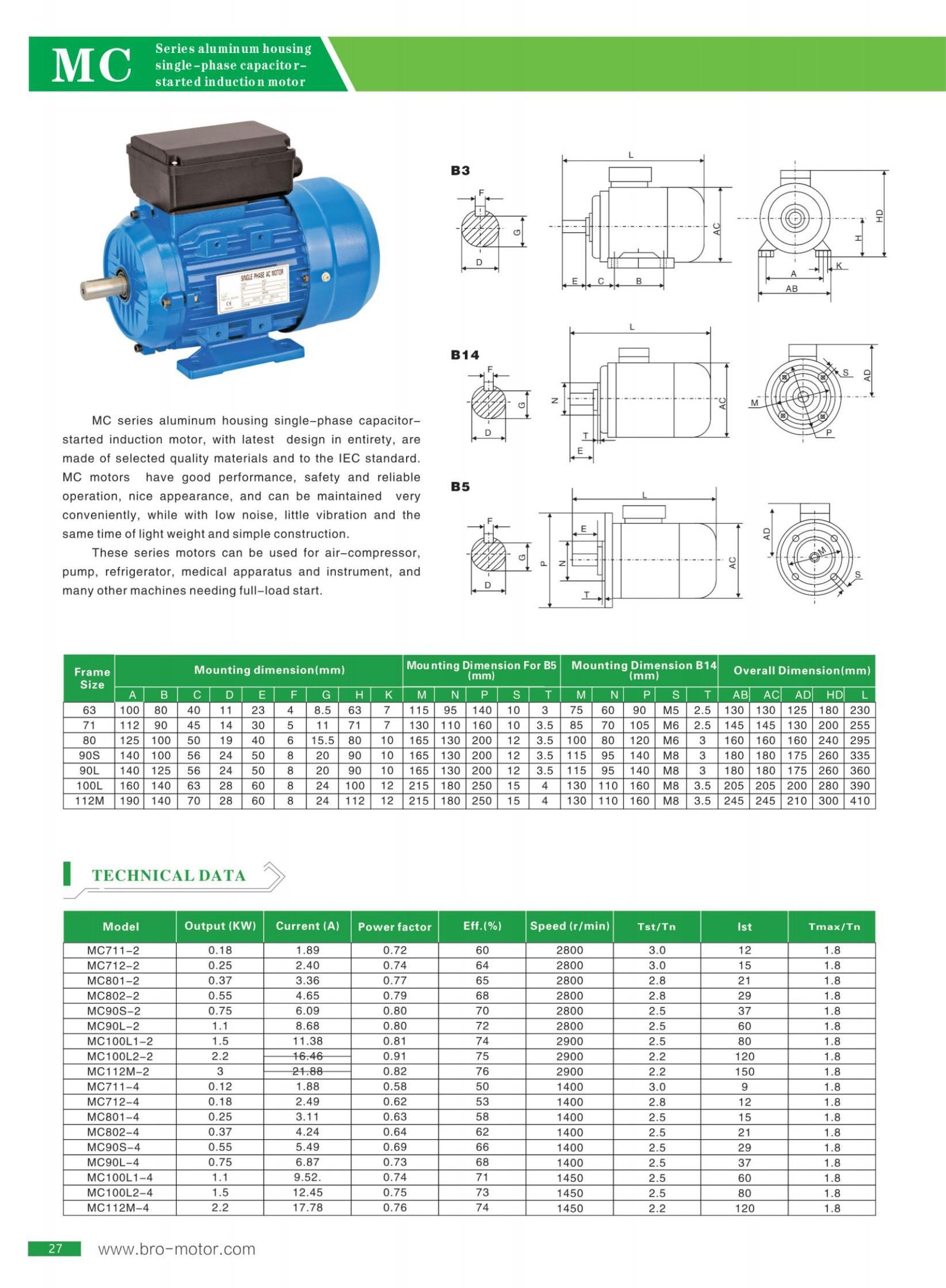

    MC series aluminum housing single-phase capacitor-started induction motor , with latest design in entirety . are made of selected quality materials and to the IEC standard . MC motors have good performance. Safety and reliable operation, nice appearance. and can be maintained very conveniently , while with low noise , little  vibration and the same time of light weight and Simple Construction . These series motors can be used for air 一compressor , pump . refrigerator, medical apparatus and instrument . and many other machines needing full-load start.

  • Features

兄弟机电画册 -纯图_15 - 副本.jpg



 Upper:BR2 SERIES THREE PHASE CAST IRON ELECTRIC MOTOR(IE2)
 Next:Y2 SERIES THREE PHASE ELECTRIC MOTOR
