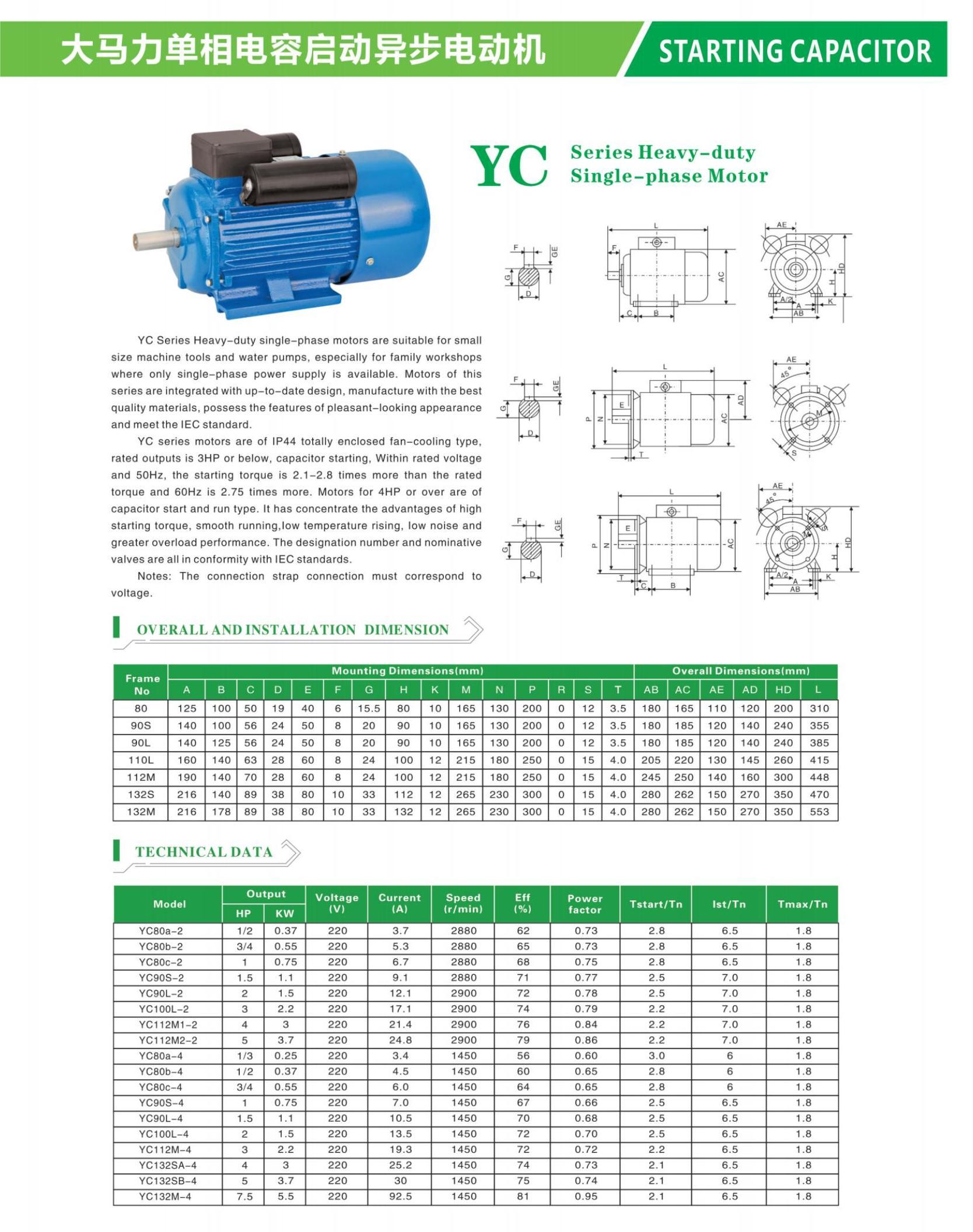

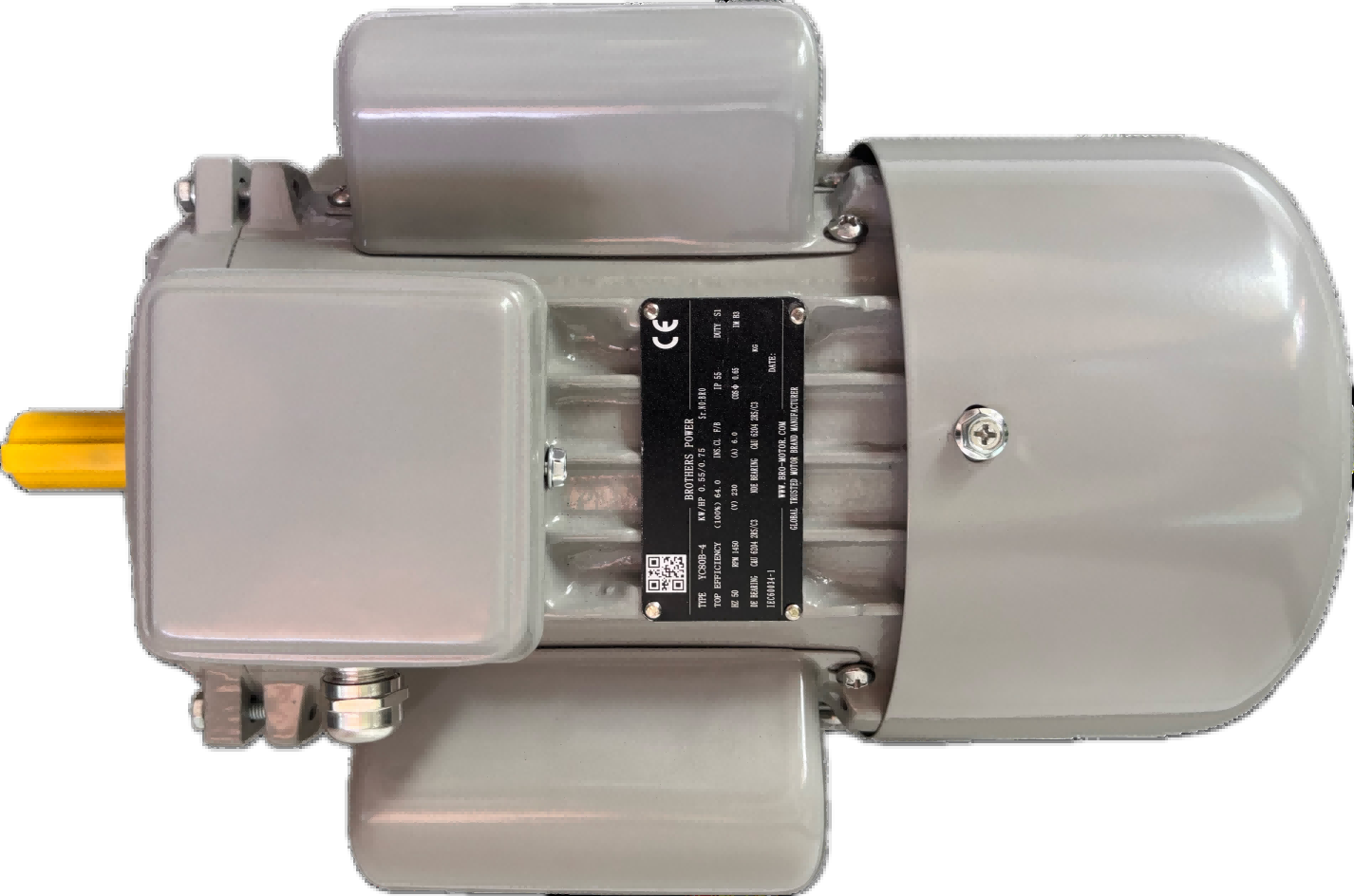

YC SERIES CAPACITOR STATOR ELECTRIC MOTOR

Housing:Cast-iron housing

Capacitor start motor

Centrifugal switch

big torque


  • Introduction

    YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps, specially for family workshops where only single-phase current supply is available. Motors of the said series are integrated with up-to date design, made with the best quality materials and possess the features of pleasant-looking appearance, outstanding performance, easy maintenance and reliable running. The designations, signs and nominal values are all in conformity with I.E.C standards。

  • Features Ambient temperature:-15℃<q<40℃
    Altitude: not exceed 1000m
    Rated voltage: 110v, 115v, 120v, 220v, 230v, 240v
    Rated frequency: 50HZ or 60HZ
    Protection class:IP44, IP54
    Insulation class: B, F
    Cooling method: IC0141
    Duty: S1(continuous)

兄弟机电画册 -纯图_13.jpg



 Upper:MS SERIES ALUMINUM HOUSING ELECTRIC MOTOR
 Next:YL Series single phase dual-capacitor induction motor
